LTSA, The new performance class.
In het verleden waren alleen grote line-arrays in staat om het volledige frequentiespectrum 30m en verder te projecteren, tot nu toe.
De LINEAR 5 LTS A brengt echte long-throw-eigenschappen naar een ultracompact formaat. Voor de gebruiker betekent dit dat er minder luidsprekercomponenten nodig zijn, waardoor waardevolle vrachtwagenruimte wordt bespaard. Het maakt ook het vliegen en stacken op de grond veel gemakkelijker en sneller. Dit maakt het LINEAR 5 LTS A Long-Throw-systeem niet alleen de eenvoudigste, maar ook de meest economische oplossing om de verbluffende geluidsresultaten te behalen voor evenementen tot 3.000-4.000 personen.
L SUB 4000 A is een flexibele 18 ″ bandpass-subwoofer met dubbele kamer. Compatibel met alle LTSA-luidsprekers, zijn krachtige low-end – variërend van 30 tot 100 Hertz – is absoluut indrukwekkend.
Uiteraard hebben wij een Demoset voor u klaar staan om uit te proberen.
LTSA

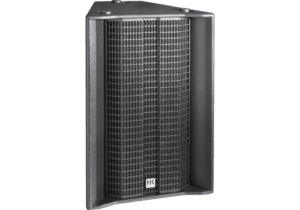

Whether it’s 30, 40 or 50 metres – the LINEAR 5 LTS A projects even sophisticated high-frequency signals to the very last row. This is made possible by the innovative Multicell Transformer (MCT), a completely new technology developed by HK Audio. This development achieves a drastic reduction of the distortion in the high-frequency range. This solves a key problem posed by previous horn and wave guide designs: the limitation of the usable sound pressure due to distortion. The LINEAR 5 LTS A is thus able to generate an exceptionally high maximum sound pressure level of 138 dB. In combination with the curved array effect created by the arrangement of the Multicells, this results in a marked range extension with precise coverage of the sound field with crystal-clear audio.
The Multicell Transformer technology makes it possible to design particularly compact speaker systems with outstanding handling characteristics. This new generation of the LINEAR 5 series is ultra-compact and lightweight with dimensions of 68 x 44 x 46 cm and a weight of just 26.4 kg. Yet it can easily replace speaker systems that are twice as large and much heavier: this means less truck space is taken up and rig installation is simplified. The classic, straightforward format of the LINEAR 5 LTS A makes ground stacking intuitive and straightforward. What’s more, practical head stacking and clustering capabilities make the LINEAR 5 LTS A the most flexible product in its sound class.
- Ultra-compact long-throw system
- Low transport volume and short assembly times
- Innovative Multicell Transformer technology (MCT)
- Vertically asymmetrical dispersion pattern (+5°/- 25°)
- Acoustically correct head stacking
- 1,000 watts (650 W + 350 W, bi-amped)
- 138 dB halfspace
- Suitable for up to 3,000 people
- Roadworthy hybrid wooden cabinet
- Made in Germany
- Perfect combination option with the L SUB 4000 A
L SUB 4000 A – A LOW-END BOOST FOR THE LINEAR SERIES
L SUB 4000 A is a flexible 18″ double vented bandpass subwoofer. Compatible with all LINEAR 5 fullrange speakers and mid/high units, its powerful low end – ranging from 30 to 100 Hertz – is totally and powerfully impressive. L SUB 4000 A can also serve as a sub-low add-on to LINEAR SUB 2000 to beef up the bottom end in the range of 30 to 70 Hertz.
- Powerful and versatile 18″ subwoofer
- Rugged wooden enclosure of birch multiplex: 15/18 mm, 9/13 ply
- 1200 W
- 31 Hz – X-Over
- 137 dB half space
- 1 x 18″ with 4″ voice coil
- Compatible with all LINEAR 5 fullrange speakers and mid/high units
- Ideal add-on for setups using LINEAR 5 LTS A
- Sub-low add-on to LINEAR SUB 2000 (A)
Direct bestellen??
Demoset
Opzoek naar jouw nieuwe set?
1x Week gratis op demo
2x L5 LTSA
2x Hoes LTSA
4x Sub 4000A
4x Hoes Sub 4000A
2x K&M 21340 Wind-up tussenstatief
€ 0,–
Prijs ex. Btw.
Tourpack
2x L5 LTSA
2x Hoes LTSA
4x Sub 4000A
4x Hoes Sub 4000A
4x Bluewheel set
2x vliegbeugelset PP/CP
2x regenkap set LTSA
2x K&M 21340 Wind-up tussenstatief
€ 9.990,–
Prijs ex. Btw.
XXL Tourpack
4x L5 LTSA
4x Hoes LTSA
6x Sub 4000A
6x Hoes Sub 4000A
6x Bluewheel set
4x vliegbeugelset PP/CP
4x regenkap set LTSA
€ 15.990,–
Prijs ex. Btw.
Bass Pack
4x L5 LTSA
4x Hoes LTSA
8x Sub 4000A
8x Hoes Sub 4000A
8x Bluewheel set
4x vliegbeugelset PP/CP
4x regenkap set LTSA
2x K&M 21340 Wind-up tussenstatief
2x DFP Duo Adapter
€ 19.990,–
Prijs ex. Btw.
Festival 3K
8x L5 LTSA
8x Hoes LTSA
12x Sub 4000A
12x Hoes Sub 4000A
12x Bluewheel set
4x vliegbeugelset PP/CP
8x regenkap set LTSA
4x K&M 21340 Wind-up tussenstatief
2x DFP Duo Adapter
€ 32.500,–
Prijs ex. Btw.
Festival 4K
8x L5 LTSA
8x Hoes LTSA
16x Sub 4000A
16x Hoes Sub 4000A
16x Bluewheel set
4x vliegbeugelset PP/CP
8x regenkap set LTSA
8x K&M 21340 Wind-up tussenstatief
4x DFP Duo Adapter
€ 39.750,–
Prijs ex. Btw.
